New DIRAK Swinghandle Cam Mounting

09/04/2020

The new DIRAK Swinghandle system has been enhanced with the introduction of their 3-440 Bearing Plate RS bases. These intermediary mounting accessories enable use of swinghandles with a single point polyamide latching cam or alternatively with standard cam and multi-point rod locking if required.

Installation is quick and simple with initial clip attachment to the swinghandle base, then twin screw fastening for security and sealing.

These internal support plates secure the swinghandle through doors of 1mm up to 3mm thickness and provide 270° limitation with the locking position engaged at 90°.

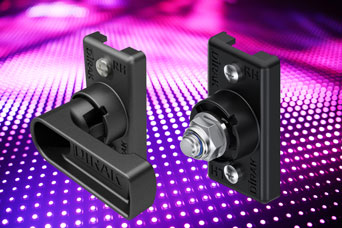

The “type a” bearing plate incorporates a black polyamide cam, while “type b” uses standard cams or 3-point adapter for connection into a rod closure system.
