Home Box Rapid IP66 1/4 turn lock

Box Rapid IP66 1/4 turn lock

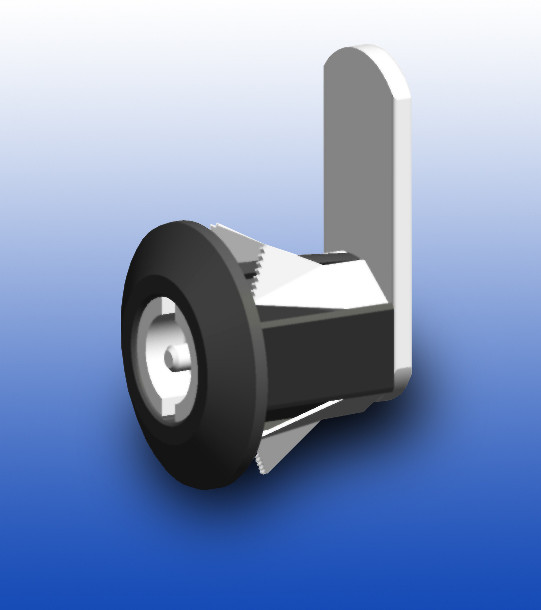

IP66 quarter turn lock from FDB Panel FittingsOur new NS IP66 quarter-turn lock again demonstrates the value of novel thinking – in this case combining soft injected silicone gasket with a push fit spring technology to cut installation time and enhance sealing performance. Now that higher IP sealing ratings are looked for in the area of electrical/electronic controls and system cabinets, the NS is expected to be of significant interest.

The NS lock body in black polyamide UL94 V-O is matched with one of many diecast alloy inserts from the range and assembled with a standard zinc plated steel cam into 1mm to 2mm sheet via a conventional double D hole of 16.6mm x 19.1mm. 90° LH or RH operation is available.
