Dirak Retractable locking pin application - from FDB

This versatile locking pin is a simple solution to retention of items such as electronics tray assemblies or even for use as a removable pin hinge for side panels etc.

  • Locking pin with spring-loaded handle.
  • Tool-less assembly.
  • Allows locking of covers and flaps in defined positions.
  • Usable as hinge.
  • Flexible use for material thicknesses from 1 to 13 mm.
  • Spacer 8mm and 4mm included in scope of delivery.

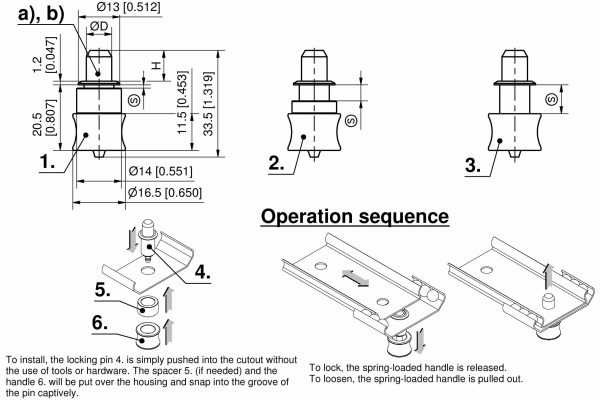

  • 1. Assembled product with spacer 8mm.
  • 2. Assembled product with spacer 4mm.
  • 3. Assembled product without spacer.
