New 180° polyamide hinges by EMKA

01/03/2016

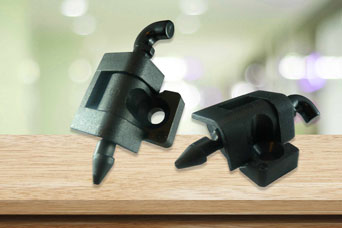

180 degree polyamide hinges from FDB Panel Fittings

We have recently introduced EMKA 1110 polyamide hinges to our range. These 180° quick fit hinges permit rapid door mounting and demount by use of a removable hinge pin which also locks the hinge into place. They are considered suitable for batch or continuous production of specialist enclosures.

1110 hinges are available to suit 16mm or 25mm flange returns on lay-on cabinet door designs which require only a very simple cut out to enable instant positioning of the door component. The frame half of the hinge uses a simple screw/nut assembly which when used with 2D nuts further permits detailed door alignment.
