New sprung and un-sprung concealed PINET hinges

Concealed PINET hinges from FDB Panel Fittings

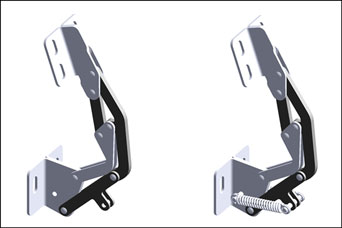

These new PINET 7 axis multi-link hinges from our online store offer concealed and sprung door opening for overlay and nested doors. Their spring counterbalance allows for easy operation while the multi-link design ensures accurate and positive closure.

This new design hinge is fitted internally to the frame/door corner from where it offers a 110° door opening with positional hold in the open and closed modes by virtue of the sprung mechanism. This means that door latching is not necessary unless specifically required. Un-sprung variants will generally require latching and do not provide positive open/close hold.

View a video on the PINET 7 axis multi-link hinges.
