PUSH FIT JOINER QUICKER AND EASIER FOR 19″ PANELS THAN A NUT AND BOLT

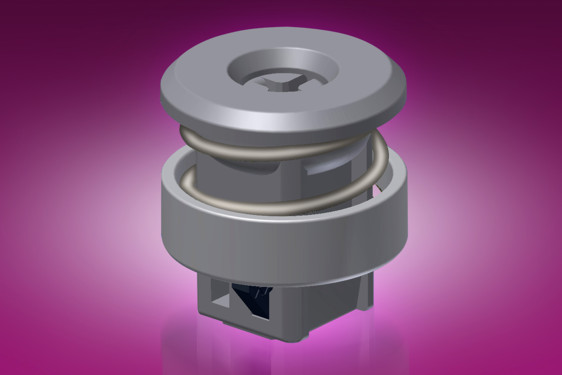

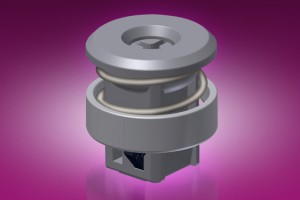

We have recently introduced a novel captive SNAP-Joiner which fits the standard 19″ rack 9.5mm x 9.5mm cutout and is quicker and easier to use than the traditional screw with cup washer and cage nut. The SNAP-Joiner is ideal for quickly installing 19″ front panels of electronic racking and for assembling other panels where rapid/removal is required. The SNAP-Joiner is simply punched into the front panel where it is held by spring clips, this assembly is then mated to the rear panel and the SNAP-Joiner core push fitted to activate spring wedges which accommodate a clamping range of up to 5.2mm in a vibration proof connection. Removal is simplicity itself with a 45° turn by cross-head screwdriver, thus meeting the requirements of the Machinery Directive 2006/42EC. 19" SNAP-joinerThis single component thus combines the function of captive screw with captive cage nut, without the need for specialist installation equipment and reducing inventory SKU’s. The simple push and snap insertion is not only faster (by up to 90%) than threaded options, but also minimises risk of cross-threading and of damage to sensitive equipment in the installation process.

The SNAP-Joiner provides positive clamping action, thus compensating for applications where tight tolerances are difficult to achieve.
