Home “Invisible ” Hinges for Prestige and Office Doors

“Invisible ” Hinges for Prestige and Office Doors

High end "€œinvisible"€ hinges with internal adjustment from FDB Panel FittingsIn the world of prestige interiors and offices, hinges can be either featured or hidden and it is this latter aspect which is addressed by our new range of “invisible” hinges. These allow the door to be opened a full 180° whilst remaining very strong and unseen when closed. This is achieved by virtue of morticing the mechanism of a hinge into the door and frame and having precision engineered involuted arms or members.

The HES3D-190 suits substantial entrance doors to places like hotels, institutions and aspirational homes. The flawless smooth movement and rock solid engineering reflect well upon the prestige of the building and they are fully adjustable on three axes so that a perfect fit for the door can be maintained from installation on through many years of service.

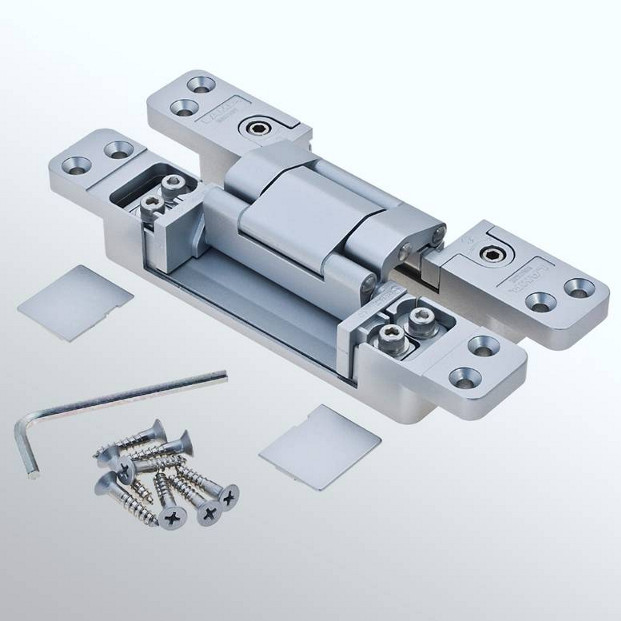

For many designers the 190 variant would be massive overkill for interior doors – which is why we also have it’s smaller relation the HES3D-120 which looks to all intents and purposes like the HES3D-190 but is about half the size. Not only does it retain its big brothers good looks but also all of its functionality. Allen keyed screws allow the hinge to be adjusted up, down, left, right, in or out. It is designed for doors up to 30kgs when two hinges are used and predictably the solidity of the mechanism is remarkable. The load of the door is distributed between seven links which allow the arms to move sweet-and-free and completely without play.

In use it has particular advantages. The body of the hinge is not as deep as other hinges in this class which may have positive ramifications for the type and design of door used.

Like its bigger brothers, installation is a one man job. The two halves of the hinge are installed on door and frame and then simply brought together on a locating pin to drop into a slot with gravity. A simple enhancement like this can really reduce the hassle on a multi-door installation. The HES3D-120 comes in either a silver or champagne gold finish at a very competitive price.

Contact us for details.
